Problems with Flex feature

I am not very familiar with the Flex feature. But I have used it
successfully several times in the past. But now, I am trying to do
something with it and I am not able to get it to do what I want it to
do. It's probably a simple matter of me not understanding the correct
way to set it up for what I am after.

Its a very simple part. Its basically a flat plastic washer with a
split in one side. A picture can be seen here:
http://i226.photobucket.com/albums/dd113/sethr_bucket/sp0608s1.jpg

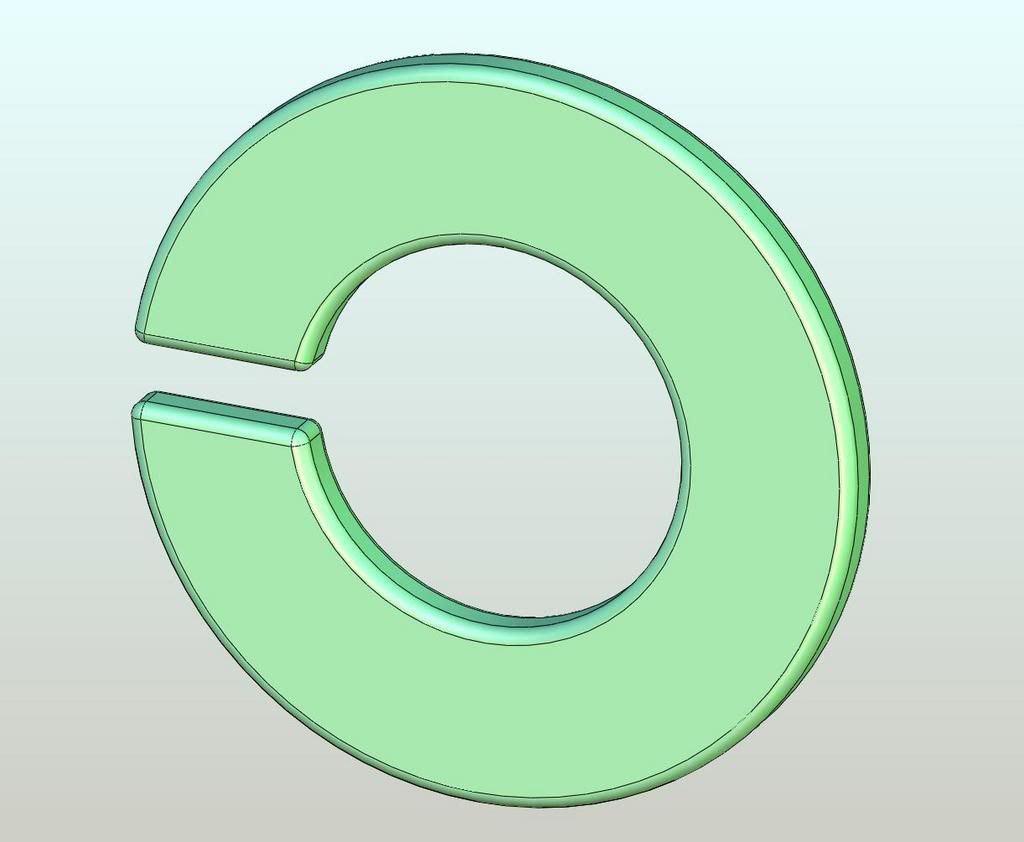

This picture shows the washer in its relaxed state. I need to create
a configuration of the washer flexed open similar to say a lock washer
(the washer will need to be flexed over a wire).

Can anyone help me out with this. I'm pulling my hair out trying to
figure this out....

Seth



Wouldn't it be easier to use a helix and change config by changing the
pitch. Should probably look more realistic as well

// Krister



Krister,

I had originally thought about that. But the problem that I ran into
was that I need to show this in relaxed state & flexed (2 configs).
The helix doesn't allow you to have a zero pitch for the relaxed
state.

I think I have it worked out now though. Its not the way I wanted to
do it. But I used a revolve feature in one config for the relaxed,
flat state. Then I suppressed the revolve, used a helix in the other
config (re-using the original sketches) to show it flexed.

But surely there has to be a way to utilize the flex feature to
accomplish this as well though, so you don't have to suppress the
original BASE revolve. I'd still be curious to see if anyone has a
solution to this. It seems like it would be easy enough with the
flex. But it sure doesn't work out to be very easy, for me anyway.

Seth



I agree, but the flex feature is a bit tweeky. It's difficult to get
it working the way You want. Don't think it was ever meant to be a
engineering feature, maybe for uniform bars and stuff like that. I
tried last week to twist a simple hanger 90°, but I couldn't get it
right, no matter how hard I tried.

// Krister
