Help designing a ring ...

Discussion in 'SolidWorks' started by Gio, Sep 2, 2004.

  1. Gio

    Gio Guest

    I know, only an Engineer would do that :)

    I am designing a ring for my self.

    Very simply, a simple rotated sector to make the band. But I would like
    to cut a meander around the ring and fill it with another metal. How do I go
    about that ?

    Thanks in advance
    George

    Gio, Sep 2, 2004
    #1
  2. Gio

    Steffen-t Guest

    Hi George

    try my example

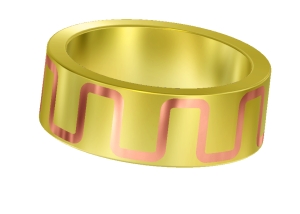

    http://www.construction-3d.de/misc/Ring.jpg
    http://www.construction-3d.de/misc/Ring_meander2.zip

    project a curve on a surface and sweep any profile along this path
    then make a circular pattern and you have your material to fill.
    To cut the material from the ring use the cavityfeature

    --

    Steffen-t

    www.construction-3d.com

    this message was written with 100% recycled electrons

    Steffen-t, Sep 2, 2004
    #2
  3. Gio

    Gio Guest

    WOW spot on ...

    Thanks guys, talk about tapping into ones infinite wisdome. This group as
    one has anamazing depth.

    G

    Gio, Sep 3, 2004
    #3
  4. Gio

    Andrew Troup Guest

    not strictly true, most of us are shallow as a duck pond, it's just that the
    few deep ones are infinitely deep........

    Andrew Troup, Sep 6, 2004
    #4
